Dynamo Engineering are pleased to announce the successful completion of the design and installation of a Bottle Wash Water Recovery System
Client: Business Stream Main Contractor: Dynamo Engineering
Pipework Contractor: Emtech Ltd
As part of both an environmental and cost saving exercise Dynamo Engineering worked with Business Stream to design supply and install a bottle wash recovery system for a major soft drinks manufacturer. A feasibility study concluded that the spent rinse water was of sufficient quality that it could be used as the pasteuriser top up water thereby, reducing both water usage and wastewater generation Dynamo Engineering were contracted by Scotland's largest provider of non-domestic water and waste water services and were integral to this project success from the outset with the initial client meetings at their headquarters in East Kilbride. Thereafter Dynamo Engineering gave engineering support with the design and build for the proposed water recovery system.
Dynamo Engineering controlled & managed the following:
Modification to existing bottle wash machine

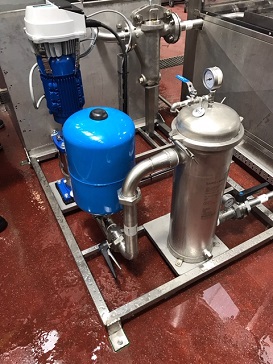

Design Fabrication and installation of new skid for mounting 0.5m^ stainless steel tank , bag filters and pumps.

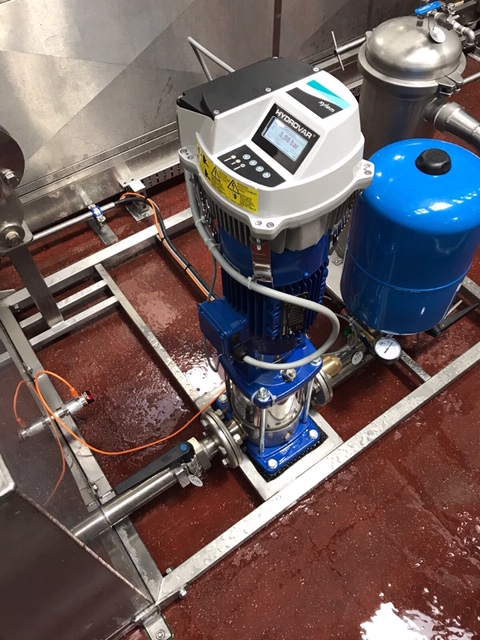

Installation of Lowara GHV20/10SV05F022T/T/ duty pump and accumulater vessel
New bottle wash to pasteuriser pipework
Modification to 125mm stainless steel pasteuriser in feed pipe,
Design and Installatio of Hydrovar control system
